Stable to work, High productivity
Safe to operation, stable performance, easy to maintain;
High precision CNC controller is optional, flexible to adjust the angle from 0-360°;
Solid working disc ensure the bending effect and lower noise;
Pure cooper wire motor in different voltage all over the world
The rebar bending machine is mainly used to process all kinds of common carbon steel and rebar into various geometric shapes required by engineer.
This machine can bend the round steel bars with a diameter of 6 to 50mm and rebar with a diameter of 6 to 40mm into various shapes required for bridges, railway & highway construction and construction projects. It also has the characteristics of simple structure, reliable quality, and easy operation. which can be said to be the indispensable reinforcing steel processing machinery in construction engineering.
|
Model |
GW-40A |
GW-40B |
GW-45A |
GW-45B |
GW-50A |
GW-50B |
|
Power |
3KW |
3KW |
3KW |
4KW |
4KW |
4KW |
|
Voltage |
380V / 50HZ / 3 Phase, or customize |
|||||
|
Motor speed |
1440r/min |
1440r/min |
1440r/min |
1440r/min |
1440r/min |
1440r/min |
|
Round bar |
6-32mm |
6-32mm |
6-36mm |
6-36mm |
6-40mm |
6-40mm |
|
Rebar |
6-28mm |
6-28mm |
6-32mm |
6-32mm |
6-36mm |
6-36mm |
|
Bending speed |
20-30r/min |
20-30r/min |
20-30r/min |
20-30r/min |
3-15r/min |
3-15r/min |
|
Weight |
220KG |
250KG |
280KG |
320KG |
350KG |
390KG |
|
Dimension |
700*700*750mm |
800*700*750mm |
850*750*800mm |
850*750*800mm |
965*785*780mm |
970*830*860mm |
Engine Model: Gasoline HONDA GX690 or Diesel engines
Power: 17.6KW / 24HP
Working Circle Diameter: 1910mm
Weight: 360KG
Cutting Diameter: Rebar 6-28mm / Round bar 6-32mm
Motor Power: 4KW-3P
Cutting Speed: 28T/MIN
Weight: 510KG
Cutting Diameter: Rebar 4-12MM / Round bar 4-14MM
Cutting Length: 0.3-99m
Cutting Error: ±5mm
Weight: 400kg
Tube bending is a process used to reshape tubing or piping into a certain shape or design. This process works on metal, alloy, aluminum, titanium, and steel.

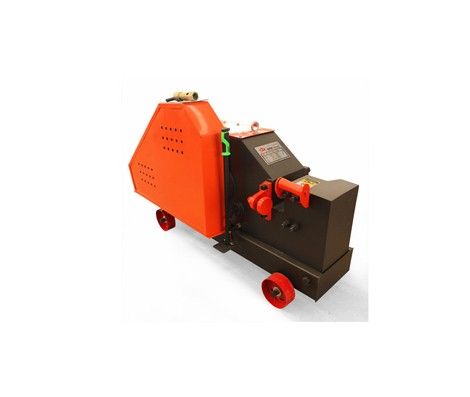

scrap steel bar cutting machine is a steel cutting equipment, which is dedicated to cutting the short section, mainly for the processing of steel scrap before recycling. Used for scrap steel recycling plant.
If you have any inquires about the construction machinery & road machinery, please donnot hesitate to contact us. We will reply you ASAP.
