Stable to work, High productivity
Safe to operation, stable performance, easy to maintain;
High precision CNC controller is optional, flexible to adjust the angle from 0-360°;
Solid working disc ensure the bending effect and lower noise;
Pure cooper wire motor in different voltage all over the world

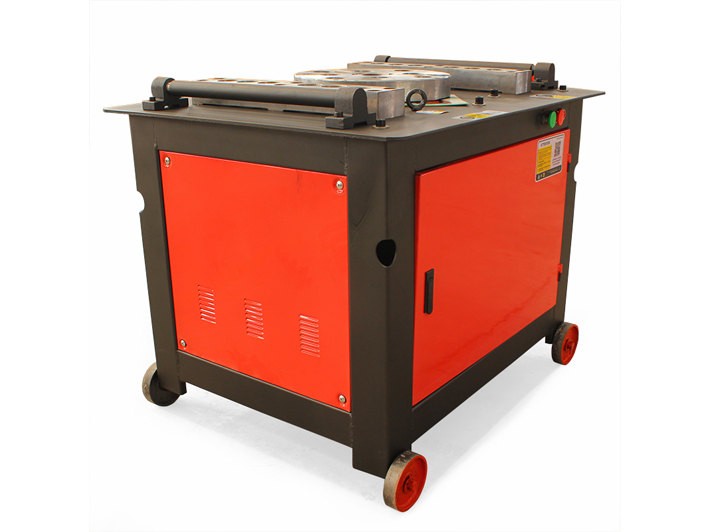

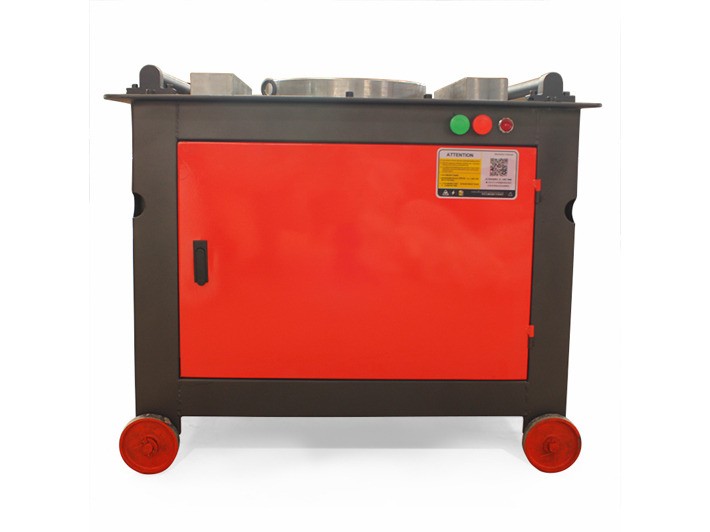

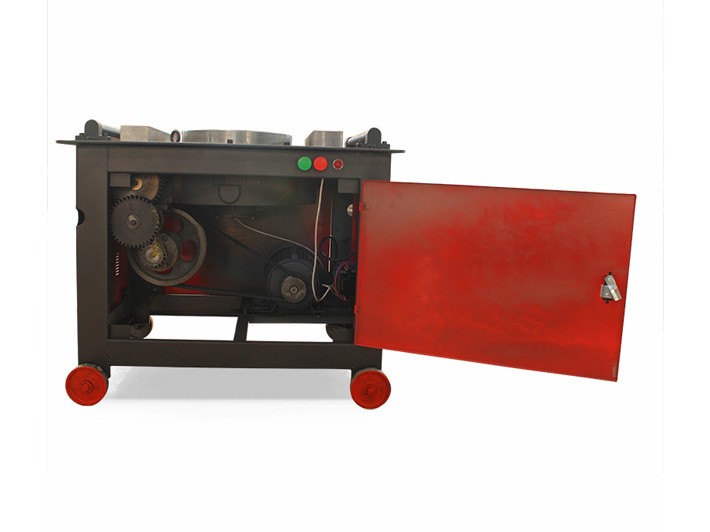

The rebar bending machine is mainly used to process all kinds of common carbon steel and rebar into various geometric shapes required by engineer.
This machine can bend the round steel bars with a diameter of 6 to 50mm and rebar with a diameter of 6 to 40mm into various shapes required for bridges, railway & highway construction and construction projects. It also has the characteristics of simple structure, reliable quality, and easy operation. which can be said to be the indispensable reinforcing steel processing machinery in construction engineering.
|
Model |
GW-40A |
GW-40B |
GW-45A |
GW-45B |
GW-50A |
GW-50B |
|
Power |
3KW |
3KW |
3KW |
4KW |
4KW |
4KW |
|
Voltage |
380V / 50HZ / 3 Phase, or customize |
|||||
|
Motor speed |
1440r/min |
1440r/min |
1440r/min |
1440r/min |
1440r/min |
1440r/min |
|
Round bar |
6-32mm |
6-32mm |
6-36mm |
6-36mm |
6-40mm |
6-40mm |
|
Rebar |
6-28mm |
6-28mm |
6-32mm |
6-32mm |
6-36mm |
6-36mm |
|
Bending speed |
20-30r/min |
20-30r/min |
20-30r/min |
20-30r/min |
3-15r/min |
3-15r/min |
|
Weight |
220KG |
250KG |
280KG |
320KG |
350KG |
390KG |
|
Dimension |
700*700*750mm |
800*700*750mm |
850*750*800mm |
850*750*800mm |
965*785*780mm |
970*830*860mm |
Engine Model: Gasoline Honda or Diesel engines
Power: 4.0KW / 5.5HP
Blade Diameter: 250-300mm
Cutting Depth: 50-120mm
Capacity: 4-10mm (Single line) / 4-8mm (Double line)
Power: Feeding - 9KW / Bending - 3.75KW
Max.Feeding Speed：85M/MIN
Dimension: 3630*1100*1900MM
Bending Diameter: Rebar 6-22MM / Round bar 6-25MM
Motor Power: 3KW-3P
Motor Speed: 1440r/min
Weight: 160KG
Bending Diameter: Rebar 6-32MM / Round bar 6-36mm
Motor Power: 4KW-4P
Motor Speed:1440R/MIN
Weight: 320KG
Scrap bar straightening machine As a kind of straightening machine, the scrap bar straightening machines are able to straighten crooked steel bar, waste reinforcing steel, steel stub bar, etc.
Engine Model: Gasoline HONDA GX160 or B&S 163
Power: 4.0KW / 5.5HP
Working Circle Diameter: 980mm
Weight: 130KG
Cutting Diameter: Rebar 4-25mm
Motor Power: 1600/1700W
Motor Speed: 3.5-4.5S
Weight: 32KG
